Geographic atrophy (GA) is an advanced stage of AMD, a progressive degenerative disease of the retina.1 The prevalence of GA is approximately 5 million worldwide and increases with age.1,2 GA is defined by sharply demarcated, atrophic retinal lesions resulting from progressive loss of photoreceptors, retinal pigment epithelium (RPE) and the underlying choriocapillaris, which results in gradual irreversible vision loss as the disease progresses.1 Patients with GA may not notice much change in functional vision at first clinical presentation because most patients present with nonfoveal lesions, which are associated with less severe visual impairment than foveal GA.3,4 However, lesions often expand, inducing a noticeable scotoma, and can include the fovea as early as 2.5 years after diagnosis.4-7
Until this year, no therapies for GA were FDA-approved. Now, we have one approved therapy available (Syfovre, Apellis Pharmaceuticals) and one therapy under FDA review (avacincaptad pegol, Iveric Bio).8,9 Guidance within the eye-care professional community on identifying patients who are at risk of developing GA and/or patients who are at risk for higher rates of GA progression is necessary in order to aid in potential treatment.
IDENTIFYING GA
Overview
Many patients initially present to optometrists and general ophthalmologists with early signs of dry AMD, such as drusen and RPE changes. They may be asymptomatic at first or only notice mild blurring. Others with more significant atrophy may experience visual disturbances such as metamorphopsia, problems reading or tracking a ball, or central vision loss. Fundus imaging is useful for AMD screening and detection, and serial imaging is especially useful to track GA progression over time.
Imaging modalities
GA is a heterogeneous disease, and progression rates for GA can vary and be unpredictable, ranging from 0.53-2.6 mm2/year.1,10 Therefore, measuring GA lesion size is critical for assessing the progression of disease.11 Multimodal imaging may be necessary for more reliable measurement of GA lesion size compared to single imaging.12

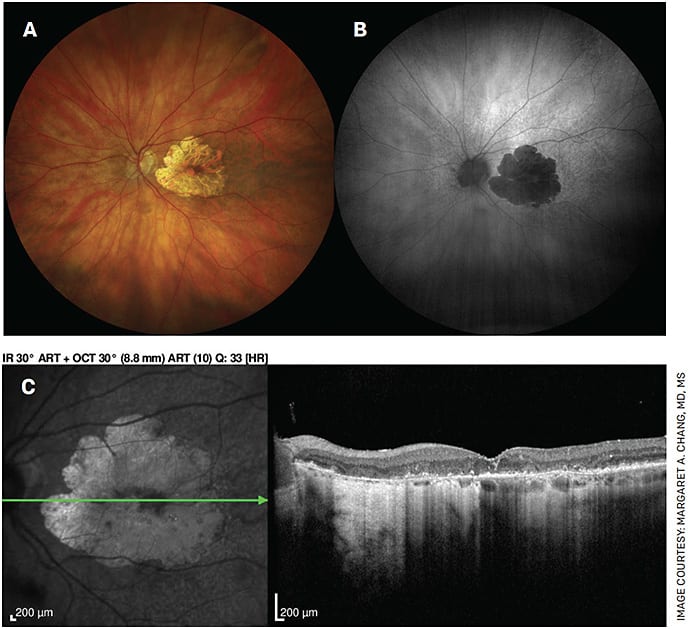

GA is seen on fundus photography as a sharply demarcated, atrophic lesion of the outer retina. Large choroidal vessels are usually visible through the area of GA because of the loss of overlying photoreceptors, RPE and choriocapillaris. Cases that are less clear on fundus photography are better imaged with fundus autofluorescence (FAF). The loss of RPE lipofuscin in GA areas leads to high-contrast images, with GA areas detected as regions of hypoautofluorescence; sequential FAF images may help with observing the rate of lesion progression and can be shown to patients to inform them about how quickly their lesion is growing over time.
However, the foveal area may be difficult to assess with FAF, and it may not be ideal for patients with parafoveal lesions.1,12
GA lesions can also often be identified with confocal near-infrared reflectance (NIR) images, which are commonly obtained at the same time as optical coherence tomography (OCT) images.13 Because no flash is required, the laser can penetrate media opacities more easily than conventional color fundus imaging, and the imaging is quite comfortable for the patient. Areas of GA correspond to increased NIR intensity and hyperreflectivity. Although NIR is often a useful substitution for FAF, GA can be isoreflective or hyperreflective and can be difficult to identify in NIR images in patients with thin choroid.14
In addition, since these images are not as high contrast as FAF, GA progression with serial imaging can be more difficult to demonstrate to the patient. GA lesions are easily identified on fluorescein angiography (FA). The GA areas appear hyperfluorescent with good visibility of choroidal vessels. FA has the added advantage of detecting occult choroidal neovascular membranes, which can occur at the edges of GA lesions; however, some patients have severe nausea with FA, and there is a small risk of fluorescein allergy and anaphylaxis.
Spectral-domain optical coherence tomography (SD-OCT) and swept-source OCT have many advantages in observing GA lesion growth. These include cross-sectional and en-face imaging with three-dimensional quantitative assessment of atrophy between different retinal layers and wider imaging areas and greater detail of the choroid, respectively.11,12 The Classification of Atrophy Meeting (CAM) group proposed a framework based on changes visualized on OCT that denoted the evolution of the atrophic process. The group agreed that GA and nascent GA are considered subsets of complete RPE and outer retinal atrophy (cRORA) and incomplete RPE and outer retinal atrophy (iRORA) in the absence of choroidal neovascularization (CNV), respectively.15
Identifying predictors
Because irreversible vision loss can occur as GA progresses, identifying predictors of disease progression can be critical for preserving vision. Risk factors for GA development can include older age, smoking, diet and genetics.16-18
Predictors of GA development and disease progression can also include imaging features or biomarkers. Imaging features that have been shown to be associated with the development of GA in patients with AMD include specific drusen (eg, soft, reticular, close distance to the fovea, calcified, larger area), pigmentary (eg, presence of RPE depigmentation, hyperpigmentation) and lesion (eg, intraretinal hyperreflective foci, persistent hypertransmission defects) characteristics.17,19-22 Larger baseline lesion size, multifocal lesions, banded/diffuse perilesional FAF patterns, nonfoveal location in the affected eye, reticular pseudodrusen (RPD), bilateral GA and fellow eye CNV are some lesion characteristics linked to higher rates of GA progression.1,23-26 OCT imaging features associated with faster GA progression rates include changes in photoreceptors, the ellipsoid zone, outer retinal layer thickness and the junctional zone area.27-31
TIPS AND PERSPECTIVES
Dr. Elizabeth Yeu: Dr. Chang, as a retina specialist, how do you monitor your patients with GA, and how do you determine which patients are more likely to progress once diagnosed with GA?
Dr. Margaret Chang: At each visit, I perform FAF, OCT and BCVA. FA can also be useful to detect hidden CNV lesions at the edge of the GA lesion, although fluid will usually be present in that area on OCT. The fellow eye of a patient with central GA is definitely at higher risk of GA progression and vision loss, especially if it has any parafoveal lesions. Some central drusenoid pigment epithelial detachments (PEDs) will reabsorb and become central GA; if the height of a drusenoid PED decreases, central GA can follow in as little as 6-12 months.
MC: Dr. Yeu, which imaging and functional tests do you prefer for diagnosing and monitoring disease progression in the clinic?
EY: In my clinic, most of my patients are anterior segment (ie, cataract, LASIK, corneal) surgical evaluation patients. Patients often know they have a diagnosis of “macular degeneration,” but I end up providing the more specific diagnosis of GA from the OCT macula that is routinely performed on all the surgical evaluations. The OCT macula is also performed for all follow-up examinations of AMD patients. Currently, I am working more diligently with the referring optometrists to get GA patients connected with a retina colleague. We check the Amsler grid and BCVA at 12.5% contrast sensitivity. Upon history intake, we routinely inquire about reading speed, quality of life and any interim changes in vision with respect to driving and lifestyle changes due to vision.
MONITORING GA PROGRESSION
Focus on visual function
Newly diagnosed patients with GA may experience early preservation of best-corrected visual acuity (BCVA) but report impairment in other visual features such as reading, which can negatively impact patients on a daily basis.3,11 However, patients with GA and good BCVA (≥20/50) are at high risk for future visual decline, with one study reporting 40% of patients experiencing a 2-year rate of ≥3-line letter loss.32-34 Therefore, it is important to monitor the impact of disease worsening on visual function.
Patients often seek guidance from their retina specialist regarding the utility of new refractions and cataract surgery when there is a decline in vision. A coordinated effort between the retina specialist and the referring general ophthalmologist or optometrist is necessary to offer the patient an optimal visual outcome. Although a gold standard in assessing visual acuity, BCVA may also underrepresent deficits in visual function, particularly in eyes with nonfoveal lesions, and the correlation between changes in BCVA and GA lesion size are not robust; therefore, other assessments may be needed to comprehensively evaluate visual declines that are also relevant to a patient’s quality of life (QoL).3,7,11,32,35,36
Reading ability
Patients with GA often experience difficulties with reading, even if they have good BCVA.36 Changes in patients’ ability to read can prevent them from enjoying or partaking in hobbies and contribute to feelings of loss of independence.37,38 Reading difficulties can also indicate presence of a scotoma, which a patient may not even realize they have, especially when they have good central vision.39 Assessing reading speed (whether patients can read full sentences and words rather than single letters) will provide information on how well the central visual field is preserved.3,39
Several studies report reduced reading speed in patients with GA.3,40-43 In one study, reading speed was worse in patients with GA compared to those with early/intermediate AMD and decreased significantly within 2 years for patients with GA,3 suggesting reading speed can be used to monitor disease worsening.
Visual impairment and functional testing
Amsler grid monitoring can also be used by patients at home to detect new scotomas or distortions that may indicate a change in AMD status. A drawback of this test is that it may not be sensitive enough to detect small changes.44,45
Further, patient questionnaires such as the National Eye Institute Visual Function Questionnaire, Activities of Daily Vision Scale and the Functional Reading Independence Index can provide an understanding of how visual impairment is affecting a patient’s daily activities,46-48 which can be a valuable tool for monitoring disease progression that may complement other functional testing.
On low-light settings
Patients with GA can experience increased visual impairment under low-light settings, which may affect their ability to read and drive at night.3,7,49 Low-luminance visual acuity (LLVA) measures visual function under reduced illumination and is rapid and simple to perform.32 Low-luminance deficit, the difference between BCVA and LLVA, may predict future visual acuity loss in patients with GA.32 Interestingly, one study reported that patients with early AMD with good night vision were less likely to develop GA than those with poor night vision.50 However, some suggest LLVA may have limited sensitivity in measuring retinal function outside of the fovea.35,51 Patients with GA have also been shown to have reduced contrast sensitivity despite good BCVA.3,11 Further, contrast sensitivity has been shown to impact vision-related QoL in patients with all stages of AMD, suggesting it may be affected earlier in the disease course and could be a potential tool for monitoring disease progression.52-54
Microperimetry
Compared to LLVA and contrast sensitivity, a more detailed and sensitive visual function assessment that encompasses specific areas of the retina can be achieved with microperimetry.11,33 Strengths of microperimetry are that it employs eye-tracking technology to provide fundus-controlled testing and mapping of retinal sensitivity that are reliable and precise.11,55 Microperimetry can be a valuable tool for evaluating progression from intermediate AMD to GA or GA progression, because it provides data that correlate functional and anatomical features of visual impairment, and changes in microperimetry have been associated with GA disease progression.35,55-57 However, microperimetry requires complex instrumentation,58 machines that are not readily available in most offices, and the test can be quite tiring and time-consuming for the patient.35,59
CONCLUSION
GA is a progressive eye disease resulting in irreversible vision loss. Guidelines to identify which patients are at risk for developing GA and to monitor GA progression are currently lacking. With a new GA therapy approved, another under FDA review, and others under investigation, identifying which patients are at risk for GA progression is critical for preserving vision and providing patients with more control over their disease. OM
REFERENCES
- Fleckenstein M, Mitchell P, Freund KB, et al. The progression of geographic atrophy secondary to age-related macular degeneration. Ophthalmology. 2018;125(3):369-390.
- Wong WL, Su X, Li X, et al. Global prevalence of age-related macular degeneration and disease burden projection for 2020 and 2040: a systematic review and meta-analysis. Lancet Glob Health. 2014;2(2):e106-116.
- Sunness JS, Rubin GS, Applegate CA, et al. Visual function abnormalities and prognosis in eyes with age-related geographic atrophy of the macula and good visual acuity. Ophthalmology. 1997;104(10):1677-1691.
- Colijn JM, Liefers B, Joachim N, et al. Enlargement of geographic atrophy from first diagnosis to end of life. JAMA Ophthalmol. 2021;139(7):743-750.
- Keenan TD, Agron E, Domalpally A, et al. Progression of Geographic Atrophy in Age-related Macular Degeneration: AREDS2 Report Number 16. Ophthalmology. 2018;125(12):1913-1928.
- Lindblad AS, Lloyd PC, Clemons TE, et al. Change in area of geographic atrophy in the Age-Related Eye Disease Study: AREDS report number 26. Arch Ophthalmol. 2009;127(9):1168-1174.
- Boyer DS, Schmidt-Erfurth U, van Lookeren Campagne M, et al. The pathophysiology of geographic atrophy secondary to age-related macular degeneration and the complement pathway as a therapeutic target. Retina. 2017;37(5):819-835.
- Retinal Physician. FDA Approves Syfovre as First Treatment for Geographic Atrophy. February 20, 2023. https://www.retinalphysician.com/issues/2023/january-february-2023/fda-approves-syfovre-as-first-treatment-for-geogra . Accessed March 3, 2023.
- Endpoints News. FDA accepts Iveric Bio's NDA, grants priority review for GA drug. Schloesser P. February 17, 2023. https://endpts.com/fda-accepts-iveric-bios-nda-grants-priority-review-for-ga-drug/ . Accessed March 9, 2023.
- Anegondi N, Gao SS, Steffen V, et al. Deep Learning to Predict Geographic Atrophy Area and Growth Rate from Multimodal Imaging. Ophthalmol Retina. 2023;7(3):243-252.
- Sadda SR, Chakravarthy U, Birch DG, et al. Clinical endpoints for the study of geographic atrophy secondary to age-related macular degeneration. Retina. 2016;36(10):1806-1822.
- Holz FG, Sadda SR, Staurenghi G, et al. Imaging protocols in clinical studies in advanced age-related macular degeneration: recommendations from classification of atrophy consensus meetings. Ophthalmology. 2017;124(4):464-478.
- Abdelfattah NS, Sadda J, Wang Z, et al. Near-Infrared Reflectance Imaging for Quantification of Atrophy Associated with Age-Related Macular Degeneration. Am J Ophthalmol. 2020;212:169-174.
- Dolz-Marco R, Gal-Or O, Freund KB. Choroidal Thickness Influences Near-Infrared Reflectance Intensity in Eyes With Geographic Atrophy Due To Age-Related Macular Degeneration. Invest Ophthalmol Vis Sci. 2016;57(14):6440-6446.
- Sadda SR, Guymer R, Holz FG, et al. Consensus definition for atrophy associated with age-related macular degeneration on OCT: classification of atrophy report 3. Ophthalmology. 2018;125(4):537-548.
- Clemons TE, Milton RC, Klein R, et al. Risk factors for the incidence of Advanced Age-Related Macular Degeneration in the Age-Related Eye Disease Study (AREDS) AREDS report no. 19. Ophthalmology. 2005;112(4):533-539.
- Joachim N, Mitchell P, Kifley A, et al. Incidence and progression of geographic atrophy: observations from a population-based cohort. Ophthalmology. 2013;120(10):2042-2050.
- Merle BMJ, Colijn JM, Cougnard-Grégoire A, et al. Mediterranean Diet and Incidence of Advanced Age-Related Macular Degeneration: The EYE-RISK Consortium. Ophthalmology. 2019;126(3):381-390.
- Tan ACS, Pilgrim MG, Fearn S, et al. Calcified nodules in retinal drusen are associated with disease progression in age-related macular degeneration. Sci Transl Med. 2018;10(466).
- Laiginhas R, Shi Y, Shen M, et al. Persistent hypertransmission defects detected on en face swept source optical computed tomography images predict the formation of geographic atrophy in age-related macular degeneration. Am J Ophthalmol. 2022;237:58-70.
- Christenbury JG, Folgar FA, O'Connell RV, et al. Progression of intermediate age-related macular degeneration with proliferation and inner retinal migration of hyperreflective foci. Ophthalmology. 2013;120(5):1038-1045.
- Shi Y, Yang J, Feuer W, et al. Persistent Hypertransmission Defects on En Face OCT Imaging as a Stand-Alone Precursor for the Future Formation of Geographic Atrophy. Ophthalmol Retina. 2021;5(12):1214-1225.
- Schmitz-Valckenberg S, Sahel JA, Danis R, et al. Natural History of Geographic Atrophy Progression Secondary to Age-Related Macular Degeneration (Geographic Atrophy Progression Study). Ophthalmology. 2016;123(2):361-368.
- Shen LL, Sun M, Khetpal S, et al. Topographic Variation of the Growth Rate of Geographic Atrophy in Nonexudative Age-Related Macular Degeneration: A Systematic Review and Meta-analysis. Invest Ophthalmol Vis Sci. 2020;61(1):2.
- Marsiglia M, Boddu S, Bearelly S, et al. Association between geographic atrophy progression and reticular pseudodrusen in eyes with dry age-related macular degeneration. Invest Ophthalmol Vis Sci. 2013;54(12):7362-7369.
- Sunness JS, Margalit E, Srikumaran D, et al. The long-term natural history of geographic atrophy from age-related macular degeneration: enlargement of atrophy and implications for interventional clinical trials. Ophthalmology. 2007;114(2):271-277.
- Sarici K, Abraham JR, Sevgi DD, et al. Risk Classification for Progression to Subfoveal Geographic Atrophy in Dry Age-Related Macular Degeneration Using Machine Learning-Enabled Outer Retinal Feature Extraction. Ophthalmic Surg Lasers Imaging Retina. 2022;53(1):31-39.
- Niu S, de Sisternes L, Chen Q, et al. Fully Automated Prediction of Geographic Atrophy Growth Using Quantitative Spectral-Domain Optical Coherence Tomography Biomarkers. Ophthalmology. 2016;123(8):1737-1750.
- Schmidt-Erfurth U, Waldstein SM, Klimscha S, et al. Prediction of Individual Disease Conversion in Early AMD Using Artificial Intelligence. Invest Ophthalmol Vis Sci. 2018;59(8):3199-3208.
- Pfau M, von der Emde L, de Sisternes L, et al. Progression of Photoreceptor Degeneration in Geographic Atrophy Secondary to Age-related Macular Degeneration. JAMA Ophthalmol. 2020;138(10):1026-1034.
- Reiter GS, Told R, Schranz M, et al. Subretinal Drusenoid Deposits and Photoreceptor Loss Detecting Global and Local Progression of Geographic Atrophy by SD-OCT Imaging. Invest Ophthalmol Vis Sci. 2020;61(6):11.
- Sunness JS, Rubin GS, Broman A, et al. Low luminance visual dysfunction as a predictor of subsequent visual acuity loss from geographic atrophy in age-related macular degeneration. Ophthalmology. 2008;115(9):1480-1488, 1488 e1481-1482.
- Chakravarthy U, Bailey CC, Johnston RL, et al. Characterizing disease burden and progression of geographic atrophy secondary to age-related macular degeneration. Ophthalmology. 2018;125(6):842-849.
- Leng T, Schwartz J, Nimke D, et al. Dry Age-Related Macular Degeneration: Distribution of Visual Acuity and Progression Risk in a Large Registry. Ophthalmol Ther. 2023;12(1):325-340.
- Wu Z, Ayton LN, Guymer RH, Luu CD. Low-luminance visual acuity and microperimetry in age-related macular degeneration. Ophthalmology. 2014;121(8):1612-1619.
- Varma R, Souied EH, Tufail A, et al. Maximum Reading Speed in Patients With Geographic Atrophy Secondary to Age-Related Macular Degeneration. Invest Ophthalmol Vis Sci. 2018;59(4):AMD195-AMD201.
- Caswell D, Caswell W, Carlton J. Seeing Beyond Anatomy: Quality of Life with Geographic Atrophy. Ophthalmol Ther. 2021;10(3):367-382.
- Brown JC, Goldstein JE, Chan TL, et al. Characterizing functional complaints in patients seeking outpatient low-vision services in the United States. Ophthalmology. 2014;121(8):1655-1662.e1651.
- Sunness JS, Rubin GS, Zuckerbrod A, Applegate CA. Foveal-sparing scotomas in advanced dry age-related macular degeneration. J Vis Impair Blind. 2008;102(10):600-610.
- Sunness JS, Applegate CA, Haselwood D, Rubin GS. Fixation patterns and reading rates in eyes with central scotomas from advanced atrophic age-related macular degeneration and Stargardt disease. Ophthalmology. 1996;103(9):1458-1466.
- Sunness JS, Applegate CA. Long-term follow-up of fixation patterns in eyes with central scotomas from geographic atrophy that is associated with age-related macular degeneration. Am J Ophthalmol. 2005;140(6):1085-1093.
- Heier JS, Pieramici D, Chakravarthy U, et al. Visual function decline resulting from geographic atrophy: results from the Chroma and Spectri phase 3 trials. Ophthalmol Retina. 2020;4(7):673-688.
- Kunzel SH, Lindner M, Sassen J, et al. Association of Reading Performance in Geographic Atrophy Secondary to Age-Related Macular Degeneration With Visual Function and Structural Biomarkers. JAMA Ophthalmol. 2021;139(11):1191-1199.
- AAO. Have AMD? Save Your Sight with an Amsler Grid. Boyd K. May 26, 2020. https://www.aao.org/eye-health/tips-prevention/facts-about-amsler-grid-daily-vision-test . Accessed March 10, 2023.
- Crossland M, Rubin G. The Amsler chart: absence of evidence is not evidence of absence. Br J Ophthalmol. 2007;91(3):391-393.
- Lindblad AS, Clemons TE. Responsiveness of the National Eye Institute Visual Function Questionnaire to progression to advanced age-related macular degeneration, vision loss, and lens opacity: AREDS Report no. 14. Arch Ophthalmol. 2005;123(9):1207-1214.
- Mangione CM, Gutierrez PR, Lowe G, et al. Influence of age-related maculopathy on visual functioning and health-related quality of life. Am J Ophthalmol. 1999;128(1):45-53.
- Kimel M, Leidy NK, Tschosik E, et al. Functional Reading Independence (FRI) Index: A New Patient-Reported Outcome Measure for Patients With Geographic Atrophy. Invest Ophthalmol Vis Sci. 2016;57(14):6298-6304.
- Patel PJ, Ziemssen F, Ng E, et al. Burden of illness in geographic atrophy: a study of vision-related quality of life and health care resource use. Clin Ophthalmol. 2020;14:15-28.
- Ying GS, Maguire MG, Liu C, Antoszyk AN. Night vision symptoms and progression of age-related macular degeneration in the Complications of Age-related Macular Degeneration Prevention Trial. Ophthalmology. 2008;115(11):1876-1882.
- Chandramohan A, Stinnett SS, Petrowski JT, et al. Visual Function Measures in Early and Intermediate Age-Related Macular Degeneration. Retina. 2016;36(5):1021-1031.
- Pondorfer SG, Terheyden JH, Heinemann M, et al. Association of Vision-related Quality of Life with Visual Function in Age-Related Macular Degeneration. Sci Rep. 2019;9(1):15326.
- Roh M, Selivanova A, Shin HJ, et al. Visual acuity and contrast sensitivity are two important factors affecting vision-related quality of life in advanced age-related macular degeneration. PLoS One 2018;13(5):e0196481.
- Vingopoulos F, Wai KM, Katz R, et al. Measuring the Contrast Sensitivity Function in Non-Neovascular and Neovascular Age-Related Macular Degeneration: The Quantitative Contrast Sensitivity Function Test. J Clin Med 2021;10(13).
- Hanout M, Horan N, Do DV. Introduction to microperimetry and its use in analysis of geographic atrophy in age-related macular degeneration. Curr Opin Ophthalmol 2015;26(3):149-156.
- Csaky KG, Patel PJ, Sepah YJ, et al. Microperimetry for geographic atrophy secondary to age-related macular degeneration. Surv Ophthalmol 2019;64(3):353-364.
- Meleth AD, Mettu P, Agron E, et al. Changes in retinal sensitivity in geographic atrophy progression as measured by microperimetry. Invest Ophthalmol Vis Sci 2011;52(2):1119-1126.
- Laishram M, Srikanth K, Rajalakshmi AR, et al. Microperimetry - A New Tool for Assessing Retinal Sensitivity in Macular Diseases. J Clin Diagn Res 2017;11(7):NC08-NC11.
- Yang Y, Dunbar H. Clinical Perspectives and Trends: Microperimetry as a Trial Endpoint in Retinal Disease. Ophthalmologica 2021;244(5):418-450.
