Imagine you are in your car just after a rainstorm has concluded. You look through your windshield; while you can still read the letters on the road signs, the view is blurred and distorted by the small, curved droplets of water on the glass. Each droplet acts as a lens, bending light, while superimposed upon the larger curvature of the windshield. As you turn on the wipers and remove the droplets, your image clarity improves (Figure 1).

Now imagine a cornea and its main large curvatures, the flat keratometric axis and the steep keratometric axis. These curves play the biggest role in focusing light on the retina. It is these large curvatures that we have worked with over the years with glasses and traditional LASIK; correcting them places the image focus on the retina. But if you take a closer look, every cornea has smaller raised topographic elevations across its surface, similar to raindrops on a windshield.

These sets of elevation, — like a fingerprint —are unique to each eye. With topography-guided LASIK, the newest evolution of refractive surgery, we can better address these elevations to improve patient outcomes.

TARGETING THE TALUS

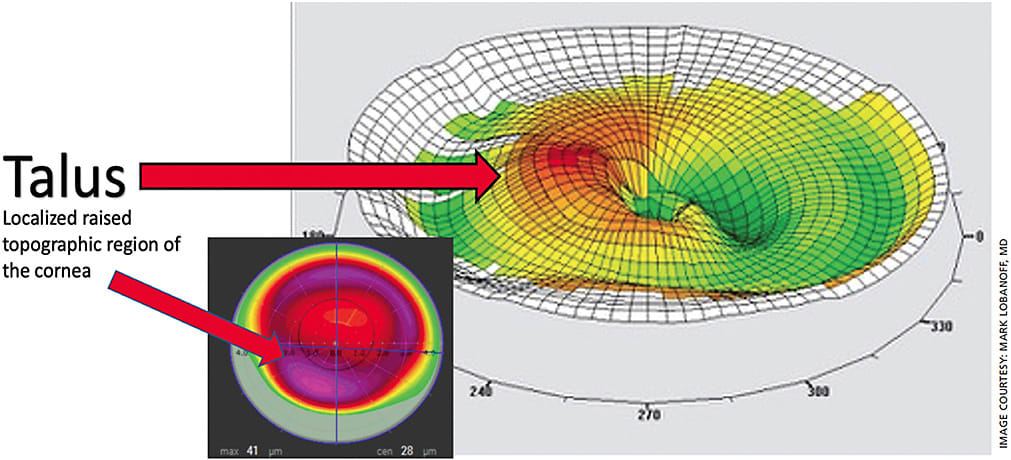

Over the past few years, I have chosen to refer to a raised curved topographic elevation on the cornea as a “talus,” a term borrowed from geographic topography. These taluses bend the light and alter its focus (Figure 2). One way to refer to the distortions of light brought on by a talus is by using a branch of descriptive mathematics known as Zernike polynomials. Depending on the size, shape and distribution of the raised topographic irregularities, they may bend light in ways Zernike polynomials describe as “coma,” “trefoil” and “quadrafoil.” Correcting these smaller aberrations in addition to correcting the larger corneal curvature leads to better quality of vision. We know this by asking patients about their quality of vision when wearing hard gas permeable contact lenses (that correct both the smaller taluses and the larger corneal curvature) as opposed to their vision with soft contact lenses (that only correct the larger corneal curvatures). This is similar to the image quality through the windshield improving when wipers smooth out and remove droplets of water.

CREATING A MAP

With topography-guided LASIK, a topolyzer is used to look for taluses on the cornea. The WaveLight Vario Topolyzer (Alcon) obtains 22,000 topographic data points to create a highly accurate map of the corneal topography. Multiple images are then averaged, resulting in 80,000 to 100,000 topographic data points for calculation and treatment. The CONTOURA software in the Alcon planning laptop then determines how much tissue ablation is needed to smooth out each talus. Every eye has its own unique tissue ablation profile. Even if two eyes share the same manifest refraction (MRx), each has its own “fingerprint” of corneal elevations that needs to be treated.

SMOOTH SURFACE, BETTER VISION

Topography-guided LASIK takes all of this mapping and planning and applies the customized “fingerprint” treatment to the eye. CONTOURA (Alcon) is the only device to receive FDA approval for a topography-guided LASIK procedure. The FDA study conducted by Alcon for CONTOURA (tinyurl.com/535b6rsm ) showed that correcting the sphere/cylinder and the taluses resulted in better vision. In the study, 92.6% of eyes achieved 20/20 UCVA and 64.8% achieved 20/16 UCVA. A total of 30.9% of eyes outperformed glasses and soft contact lenses. This is because glasses and soft contact lenses do not correct for the raised topographic elevations on the cornea, which in turn degrades image quality. Patients see better with a smooth, regular corneal surface. This was further evidenced by some of the quality metrics in the FDA study — 99.6% of patients noted no light sensitivity, 98% had no difficulty driving at night and 100% of patients had no significant glare at night. For the first time ever in a LASIK FDA study, patients did not see an increase in halos and 3.2% actually noted a decrease in their halos at night as compared with glasses and contacts.

However, patients entered in the FDA study had nearly perfect corneas with very few taluses, so the biggest factor influencing the manifest refraction was the corneal curvature. In these eyes, the manifest astigmatism magnitude and axis were nearly identical to the measured anterior corneal astigmatism. Usually, they differed by only 5-10°.

When releasing CONTOURA, Alcon told US surgeons to plan their LASIK cases the same way they had for traditional LASIK — to base the treatment solely off the MRx. This was fine for the majority of eyes, which showed the manifest astigmatism to match the corneal astigmatism. But for about 20-30% of eyes, the results were off. Why? Topography-guided LASIK removes taluses, and the taluses in these eyes were significant enough that their effect on light was influencing the patient’s choice of MRx at the phoropter. When the taluses were removed by the CONTOURA treatment, their refractive effect was also removed. Yet the surgeon was still treating the entire MRx from the phoropter. This led to flipped astigmatic axis and unusual residual postoperative astigmatism in these eyes.

These results were mirrored by surgeons all across the United States. Treating topography-guided LASIK based off of the MRx simply was not the best way to get optimal results.

IMAGING SOFTWARE

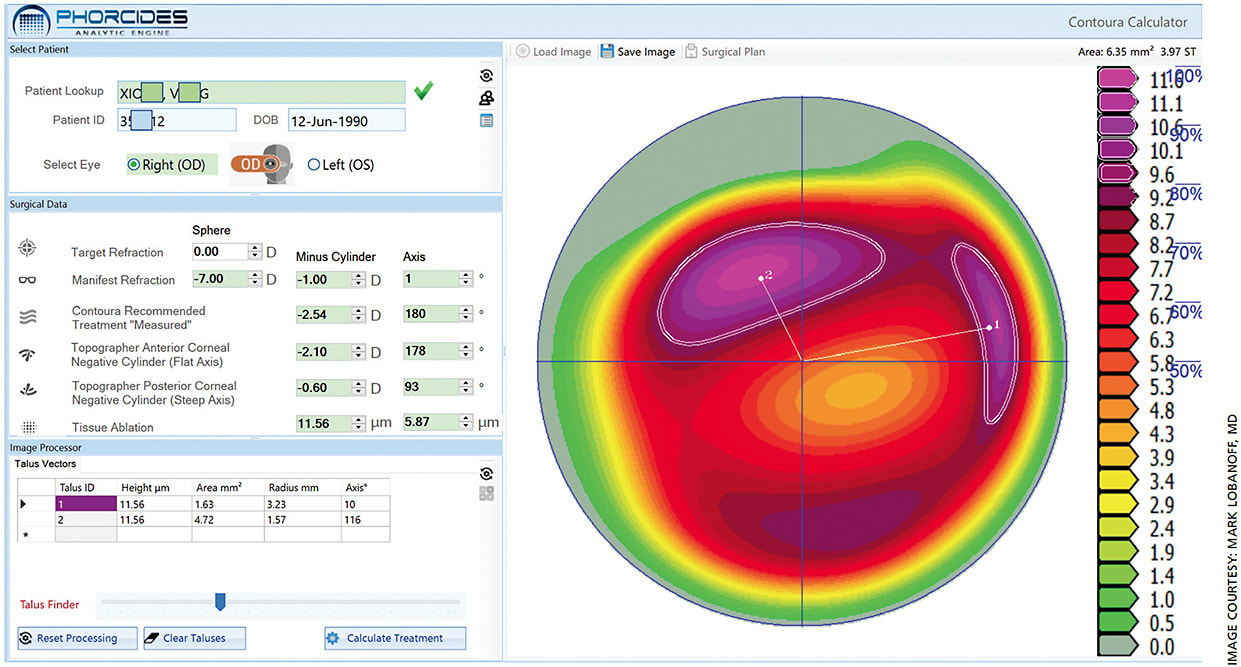

To assist the surgeon driving topography-guided treatments, new technology was required. I developed Phorcides Analytic Engine to meet this need. Phorcides uses geographic imaging software to analyze the two-dimensional corneal topographic treatment image produced by the Alcon CONTOURA planning laptop and pull detailed information about the complex three-dimensional cornea from it (Figure 3).

The software then compiles a series of refractive vectors: one vector for each raised topographic feature on the corneal surface, one vector for the anterior corneal astigmatism, one vector for the posterior corneal astigmatism and one vector for any internal lenticular astigmatism. Finally, it uses a series of advanced computer algorithms to determine the best treatment for each eye.

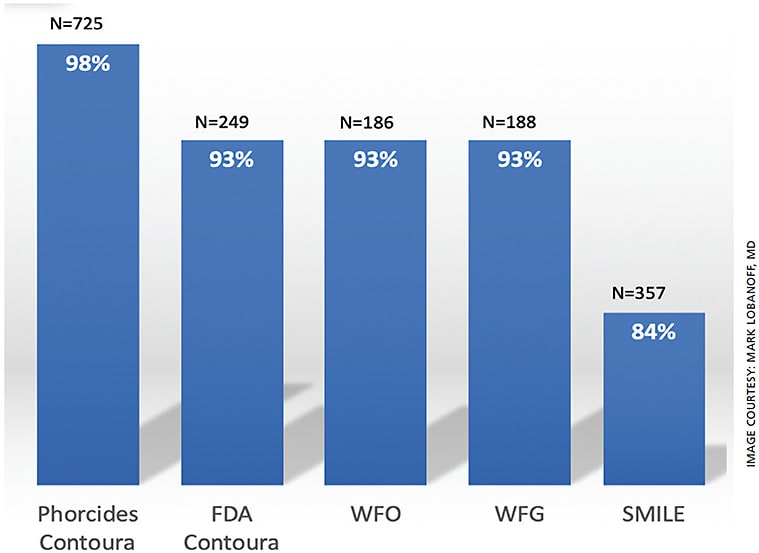

In addition to yielding exceptional results in primary virgin eye treatments (Figure 4), there is great potential in using Phorcides-planned CONTOURA to improve irregular eyes, an off-label use of this FDA-approved technology.

Take, for instance, an eye with a SMILE complication. The patient had a BCVA (20/20) in his left eye prior to surgery with minimal higher-order aberrations. After SMILE, the patient had terrible vision in his left eye, UCVA 20/80 and triplopia with severe halo, glare and starbursts. The topography showed very irregular astigmatism in the eye.

It was decided that the best way to correct the vision was to use CONTOURA in an off-label repair approach. Phorcides was used to plan the complex treatment. The patient had complete resolution of his triplopia following his CONTOURA treatment along with 80% reduction in his glare. BCVA returned to 20/20. Similar improvements can be made for off-centered ablations, corneal distortion from scars, post-RK corneas, post-PKP eyes and in patients with early era small optical zones following high myopic treatment.

TREATING KERATOCONUS

Perhaps the greatest feat for Phorcides-CONTOURA is correcting eyes with keratoconus. A cone is simply a very large, very steep corneal topographic irregularity — a massive talus. Using Phorcides-planned CONTOURA PRK combined with crosslinking can improve the topography while halting the progression of the disease. In preliminary data presented at ASCRS in 2020 by myself, Zhao and Hammond, we showed that 94% of eyes achieved 20/40 or better UCVA with 48.5% achieving 20/25 or better, and 75.8% of eyes gained two or more lines of UCVA.

CONCLUSION

Topography-guided excimer laser treatment represents the current pinnacle of refractive procedures when planned using Phorcides software. Uses extend beyond primary treatments into off-label repair procedures for complex eyes. OM

REFERENCES

1. Lobanoff M, et al. Clinical Outcomes after Topography-guided LASIK calculated with new topography analysis algorithm: Retrospective results from 5 US Clinics. Dovepress, in press.
2. FDA Clinical Trials. Allegretto Wave Eye-Q Addendum Procedure Manual T-CAT topography-guided treatments. https://tinyurl.com/535b6rsm . Accessed May 19, 2021.
3. Stonecipher K, Kerzirian G. Wavefront-optimized versus wavefront-guided LASIK for myopic astigmatism with the ALLEGRETTO WAVE: Three-month results of a prospective FDA trial. J Refract Surg. 2008;24(4):S424-S430.
4. Sekundo W, Kunert KS, Blum M. Small incision corneal refractive surgery using the small incision lenticule extraction (SMILE) procedure for the correction of myopia and myopic astigmatism: results of a 6-month prospective study. Br J Ophthalmol. 2011;95(3):335-339.
