Marketplace

Focus on Surgical Microscopes

OPMI VISU MICROSCOPES
Carl Zeiss Meditec
• Carl Zeiss Meditec says the OPMI VISU 140 offers all of the basic functions necessary for efficient cataract surgery, including a main lens and zoom optics that are apochromatically corrected, and coaxial illumination for red reflex. CZM considers the OPMI VISU 140 the system of choice for outpatient hospitals or small clinics because if its economical price.
The OPMI VISU 160 is designed for both anterior- and posterior-segment procedures. Its DeepView depth-of-field management system enables adjustment for optimizing either depth of field or light transmission and resolution.
The OPMI VISU 210, with Superlux Eye xenon illumination, provides a white light that CZM says meets even the highest demands, resulting in a bright, high-contrast image with natural color. The VISU 210 is a unique assistant's microscope, with almost weightless positioning due to magnetic locking brakes which complete the system.

Carl Zeiss Meditec
Phone: (800) 442-4020
www.zeiss.com/eye

THE KHOSLA K-6001
Khosla Medical, Inc.
• Khosla’s K-6001 operating microscope has a Nikon stereo-zoom optical head and 10x eyepiece with a 45° vertical inclination. Its interpupillary distance ranges from 52 mm - 75 mm. It has a working distance of 181 mm and zooming range between 0.8 - 3.5x.
The K-6001 comes with counterbalanced spring arms, which can be rotated to 320° with lock. The microscope also comes with a continuous foot control without steps. The field of view is between 52.5 mm - 12 mm and total magnification range is 4x - 17.5x. It has four caster wheels for easy handling that ensure absolute stability.

Khosla Medical, Inc.
Phone: (408) 996-0205
www.khosla-med.com

THE LOM SERIES
Konan Medical, Inc.
• The Light Operation Microscope (LOM) series is Konan’s newest line of operation microscopes for ophthalmology. The microscopes have a “onetouch clamp,” providing an easy locking mechanism. The optics angle can be adjusted by a lever and users can then release the lever to fix the optics in the selected position.
A well-balanced pantograph arm helps in maneuvering the microscope. LOM also features the high-eye point, which allows users wearing glasses to look through the microscope. A builtin beam splitter enables easy upgrades to video-assisted systems.
Konan Medical, Inc.
Phone: (310) 370-6359
www.konan.com

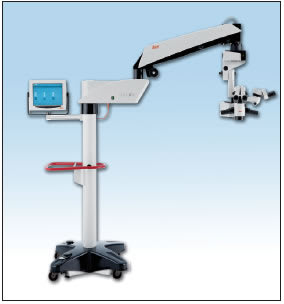

THE LEICA OPHTHALMOLOGY PORTFOLIO
Leica Microsystems, Inc
• Leica ophthalmology microscopes feature direct illumination, which can be highly focused to provide crisper images and more consistent illumination throughout the field of view. There is never degradation of illumination, which can be a problem with fiber optic illumination systems, says Leica.
The M844, Leica’s premium class surgical microscope, features APO OptiChrome optics and gives both the surgeon and assistant 100% illumination and 100% stereopsis. The M820, Leica’s mid-range microscope, also features APO OptiChrome.
Both the Leica M844 and M820 feature an integrated video monitor and StepCycle, which allows the surgeon to preprogram the microscope functions for each step of a surgical procedure.
The M620 is the latest addition to Leica’s portfolio and is an ideal and economical solution for surgery centers.

Leica Microsystems, Inc.
Phone: (800) 526-0355
www.surgicalscopes.com

OP-2Z OPERATION MICROSCOPE SHIN-NIPPON
Ophthalmic Instruments
• The OP-2Z Operation Microscope provides crisp, high stereopsis, zoom optics and bright halogen illumination. Imaging from anterior to intraocular structures are produced and viewed with distinct precision.
Coaxial illumination is aided by a light-guide system utilizing the halogen lamp. The OP-2Z features a continuous zoom system incorporating a 4.5x - 18x magnification range and optional X-Y movement device, each footswitch-controllable.
The design of the OP-2Z supports various pieces of optional equipment. You can build the microscope system that is dependent upon your requirements, not the manufacturer’s, according to the company. Assistant scopes, monocular and binocular video mounts and oblique illuminator with slit device are available as options.
The user-friendly OP-2Z microscope employs components requiring minimal care by assistants and staff members. New lamp replacement is quick and easy, especially during procedures. Traditional fuses have been replaced by circuit breakers.

SHIN-NIPPON Ophthalmic Instruments USA
Phone: (440) 543-5742
www.shin-nippon.jp

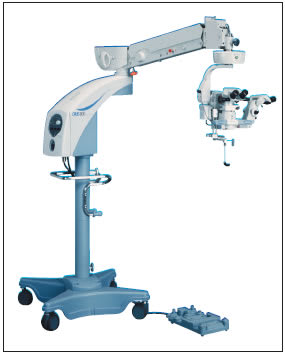

OMS-800 OPERATION MICROSCOPE
Topcon Medical Systems
• Topcon introduces the OMS-800 Operation Microscope with Optical Fiber Free Intravitreal Surgery System (OFFISS). This system allows for bimanual vitrectomies and other types of retinal surgeries without the need of handheld fiber-optic illumination.
The OMS-800 features refinements such as a double-focusing mechanism, electromagnetic locks and programmable footswitch. Topcon says the OMS-800 is suitable for all ophthalmic operations.
Additionally, the OMS-800 offers comfort for the surgeon and assistant, plus clear, bright views of the structures of the eye and total control over all mechanical and electronic functions, says Topcon.

Topcon Medical Systems
Phone: (800) 223-1130
www.topconmedical.com

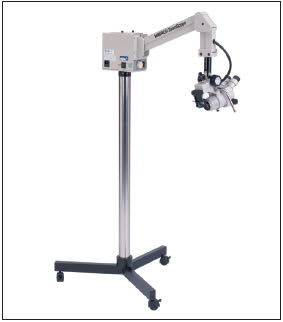

ZOOMSCOPE
Wallach Surgical
• Wallach’s Nikon Zoom optics and unique overhead suspension produce a well-designed ophthalmic operating microscope. The suspension system locks to keep the unit stabilized throughout any procedure without adjustments. Position the scope and it stays put. It can be pushed up and out of the way of both physician and patient for unobstructed access to the examination site.

Wallach Surgical
Phone 800 243-2463
www.wallachsurgical.com
