Focus on Pachymetry Devices

PACHPEN
Accutome

The PachPen's ergonomic design makes taking measurements quick and easy. The unit has the ability to take nine readings and average them. In addition, the IOP correction calculator converts entered IOP measurements from a tonometer in seconds. Accutome says its Digital Signal Analysis actually examines waveforms and eliminates marginally aligned measurements.



Accutome
Phone: (800) 979-2020
www.accutome.com

VISANTE
Carl Zeiss Meditec

The Visante OCT system is the first to provide clear, highly detailed anterior segment images – including the angle – without the need for ocular anesthesia or a messy, time-consuming water bath, says Carl Zeiss Meditec. Visante OCT high-resolution corneal and anterior segment images support the evaluation of narrow angle and ocular health. Additionally, Visante OCT is the first non-contact device to image, measure and document post-LASIK flap and residual stromal bed thickness.

Carl Zeiss Meditec
Phone: (800) 342-9821
www.meditec.zeiss.com

PACHMATE DGH55
DGH Technology

DGH Technology says the DGH55 is one of the world's
smallest and lightest handheld pachymeters. The portable DGH55 pachymeter is only 6.9 inches long and weighs 3.6 ounces. It is designed for assisting in glaucoma and LASIK screening. DGH Technology says that the DGH55 is the only pachymeter in which the probe can be safely folded into the handle.

DGH Technology, Inc.
Phone: (800) 722-3883
www.dghkoi.com

CC-7000 AND THE SP-9000
Konan Medical, Inc.

K Both Konan's CC-7000 and the SP-9000 have a built-in pachometer. The device uses an electro-optical method to measure the thickness of the cornea. The CC-7000 measures the cornea thickness at the same time it photographs the endothelium. The SP-9000 model has a separate mode for increased accuracy.

Konan Medical Inc.
Phone: (800) 941-2663
www.konan.com/hp2001/english/





PALMSCAN P2000
Micro Medical Devices, Inc.

The PalmScan P2000 is a portable, wireless, pocket-size, battery-operated ultrasonic biometer able to perform numerous functions, including IOP adjustment, peripheral corneal measurement, intraoperative flap thickness and corneal bed measurement, as well as measure corneal scar size and depth.

 The P2000's desktop patient data management software can interface with any existing EMR. P2000 is suited for physicians treating patients in multiple settings and can be upgraded to include an A-scan.

Micro Medical Devices, Inc.
Phone: (866) 730-0663
www.micromedinc.com





POCKET II PACHYMETER
Quantel Medical

The Pocket II Precision Pachymeter is a portable pachymeter that fits in the pocket of a lab coat.

With a measurement range of 200 to 999 microns and accuracy of ±5 microns, the Pocket II is designed to measure corneal thickness in a wide variety of clinical and surgical applications. The system records one to 10 measurements, with automatic averaging and a built-in test block.

Quantel Medical Inc.
Phone: (888) 660-6726.
www.quantelmedical.com





RESPONSE ANALYZER
Reichert

The Reichert Ocular Response Analyzer not only enables the measurement of central corneal thickness, it also direct measure of corneal biomechanical properties. This new measurement, called corneal hysteresis, is an indicator of the overall integrity of the cornea — providing more complete information than thickness alone. The system is able to present IOPcc, a new measure of IOP that correlates with Goldmann, but is less affected by corneal properties, such as elasticity, resistance and thickness.

Reichert
Phone: (716) 686-4500
www.reichertoi.com

PACSCAN
Sonomed

The Sonomed PacScan is a portable, digital pachymeter with intuitive touch screen operation and automatic scan capture. The 20 MHz transducer provides excellent accuracy and measurements as thin as 100 microns, says Sonomed. On-board diagnostic system calibration and probe sensitivity tests are performed automatically to ensure accurate and repeatable readings. PacScan is available as a stand-alone pachymeter with choice of probes.

Sonomed
Phone: (800) 227-1285
www.tomeyusa.com



CORNEO-GAGE PLUS
Sonogage

The Corneo-Gage Plus portable ultrasonic pachometer is available with an optional built-in printer and only needs recharging once a year. Sonogage's proprietary 50 MHz transducer technology and Soft-Touch probe design offer increased visibility and a reduced chance of corneal abrasions. Individual readings are not averaged, thus avoiding false high measurements. With a measurement range of 25μ - 2mm, and an accuracy of ±0.4μ, any LASIK flap can be measured without the addition of fluids, and users can also measure IntraLase flaps in situ.

Sonogage
Phone: (800) 798-1119
info@sonogage.com

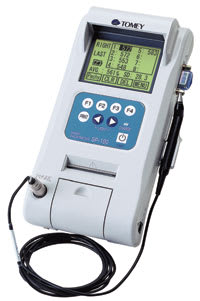

SP-100 HANDY PACHYMETER
Tomey

The Tomey SP-100 Handy Pachymeter weighs only 19 ounces and provides highly accurate measurements of central corneal thickness. The SP-100 offers IOP calculations, built-in printer and an RS-232C communication port for quick recording and easy data output to office computers. The built-in rechargeable battery enables wireless operation. The easy-to-read print out includes patient ID, name and measured date.

Tomey
Phone: (888) 449-4045
www.tomeyusa.com



EAGLE EYE 3000
Vision Medical Instruments

Vision Medical Instruments' Eagle Eye 3000 is a user-friendly, precision pachymeter. Its 1/4 micron precision and +/- 1 micron repeatability makes it unnecessary to perform any additional "filtering" or "averaging." Vision says the Eagle Eye 3000 is the only pachymeter that self-calibrates. This feature provides accurate performance for the life of the unit.

Vision Medical Instruments
Phone: (440) 338-5981
www.visionmedicalusa.com
